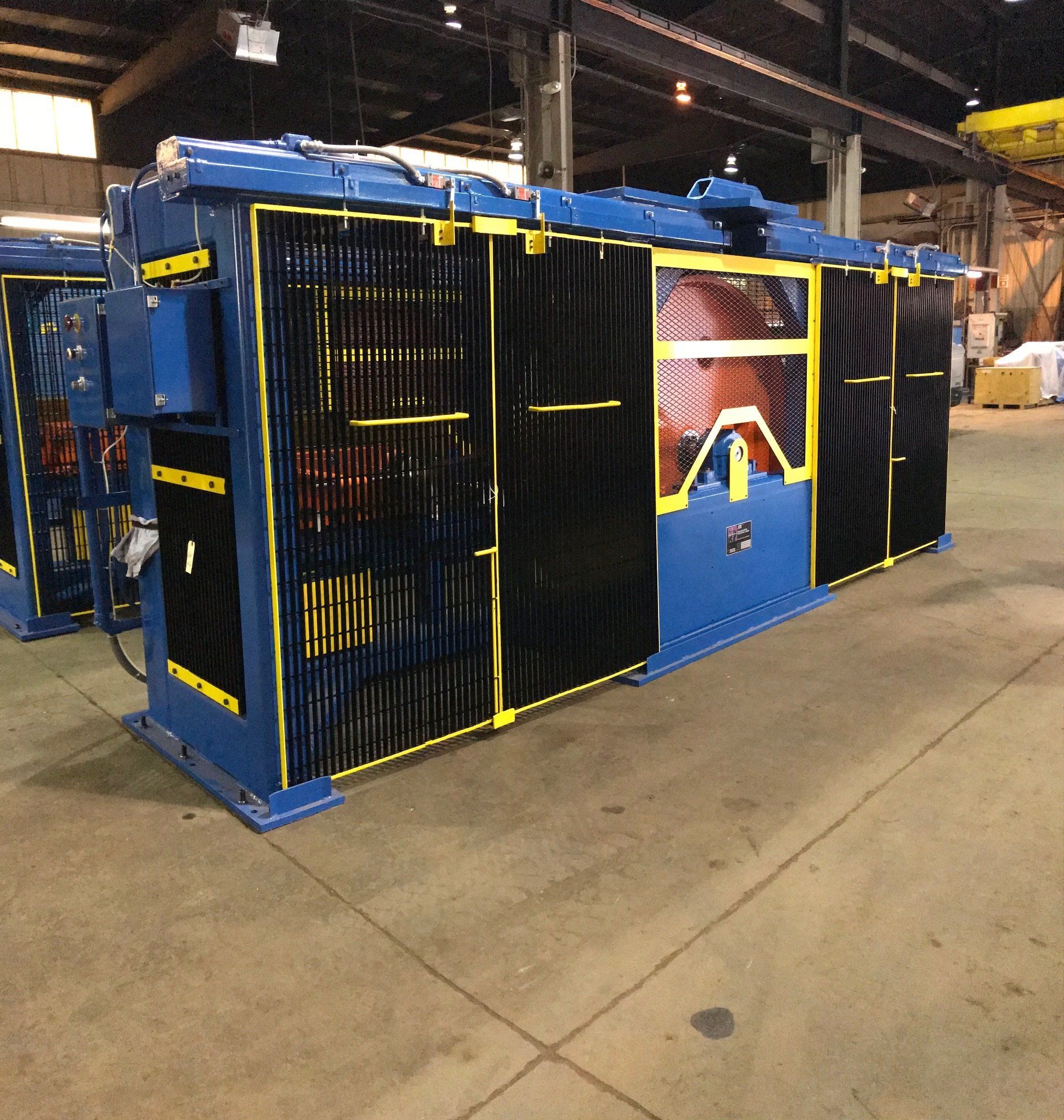

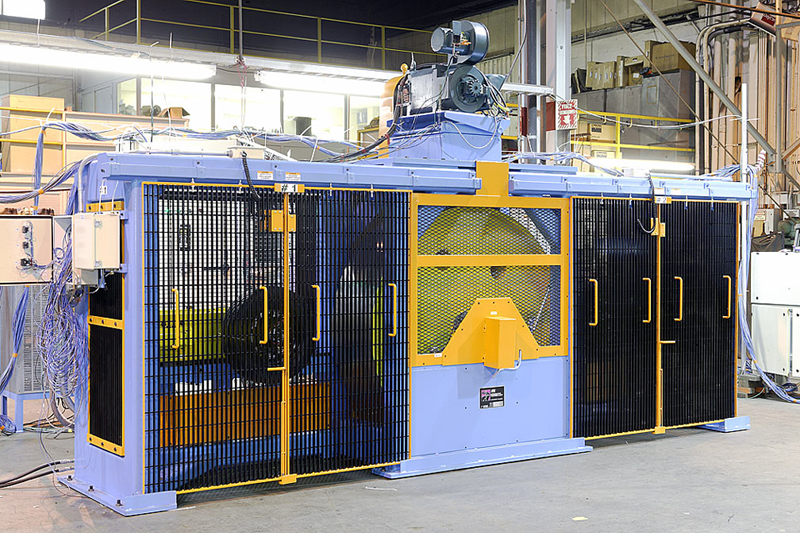

Radial Fatigue Tire / Wheel Test Machine
Standards Testing Laboratories’ Radial Fatigue Tire and Wheel Test Machine is a proven workhorse for testing tires and wheels worldwide. These machines are designed to customer specifications and can be manufactured to accommodate varying test product sizes through a range of loads and speeds.
Features:
- Hydraulic or electro-mechanical loading with self-contained units
- Closed-loop control
- One-piece heavy duty frame with 2 test positions
- Cantilevered wheel/tire mounting for easy access
- PLC or PC (Allen Bradley / National Instruments) Control system
Capabilities:
- Air pressure control from 0 psi to 200 psi
- Remote inflate/deflate for improved safety
- Traceable calibration standards for load, speed, and air pressure
Specifications: (standard machine)
- Roadwheel diameter: 67.227 to 120 inch (1.7 to 3 meter)
- Roadwheel width: 18 to 48 inches (457 to 1219 mm)
- Roadwheel speeds: up to 300 mph ( 480 km/h)
- Roadwheel loads: up to 100,000 lbs (45,000 Kg)
- Tire/wheel assembly lifting hoist - for easy mounting and dismounting
- Master computer options for data acquisition
- On center slip and camber up to +/- 15 degrees
- Multi-axis measurements including rolling resistance
- A master computer for data acquisition
